SS Instrumentation Tube Fittings & Valves

  • Home
  • SS Instrumentation Tube Fittings & Valves

Stainless steel (SS) instrumentation tube fittings are essential components in many industrial applications, particularly those that require high pressure and high temperature operations. These fittings are designed to connect and secure tubing systems used in various industries, such as oil and gas, chemical processing, and power generation.

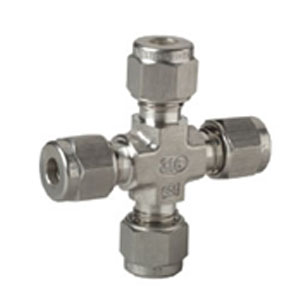

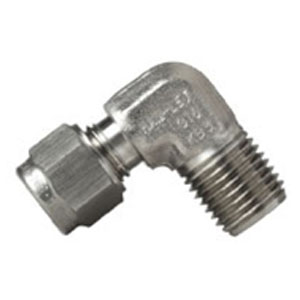

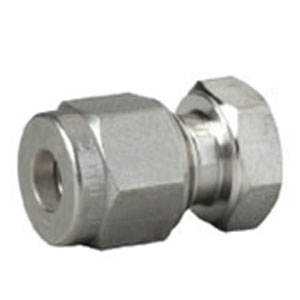

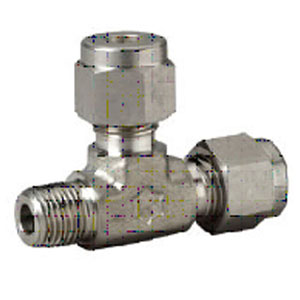

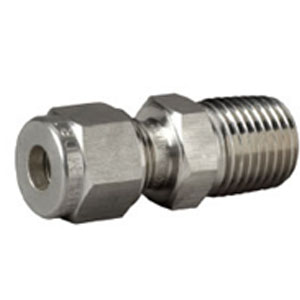

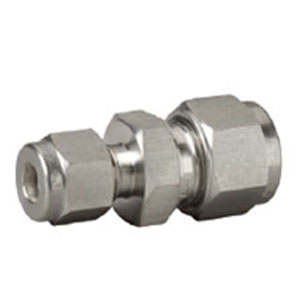

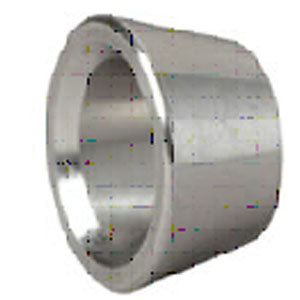

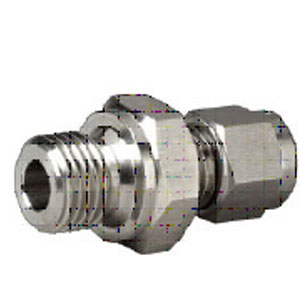

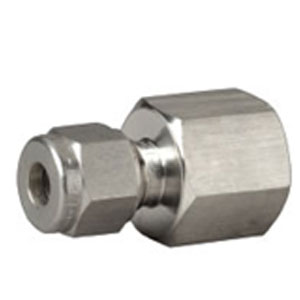

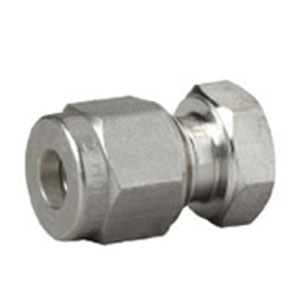

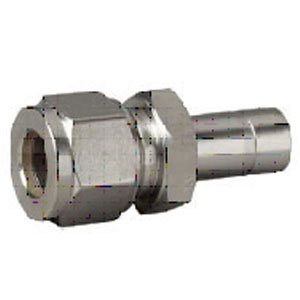

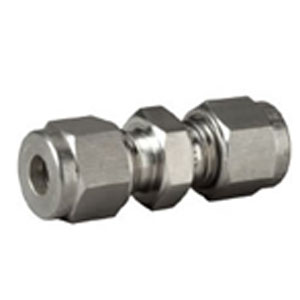

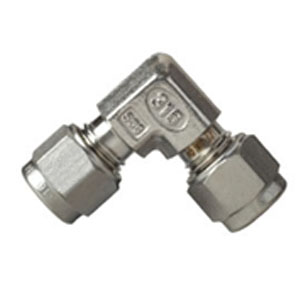

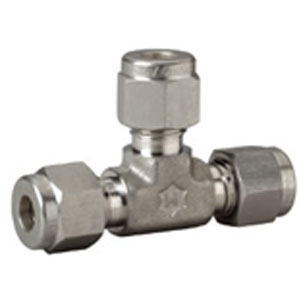

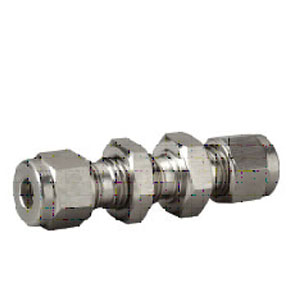

SS COMPRESSION DOUBLE FERRULE TUBE FITTINGS

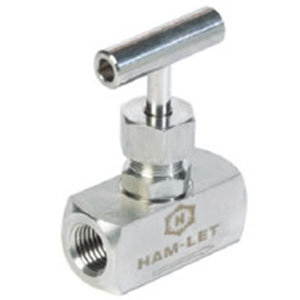

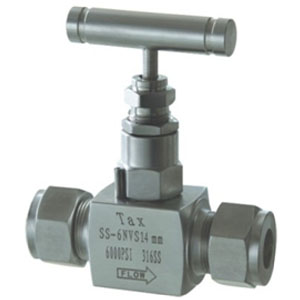

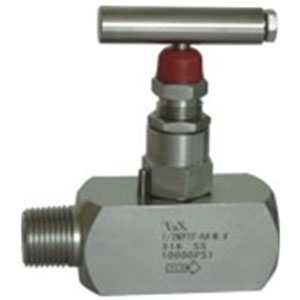

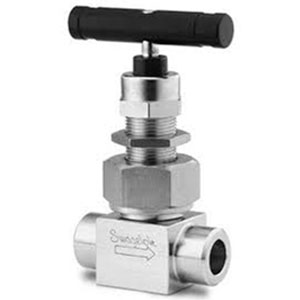

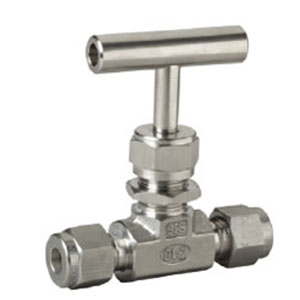

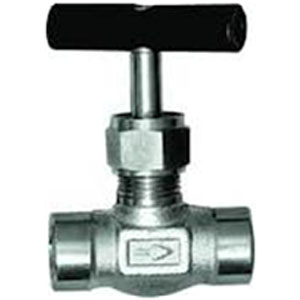

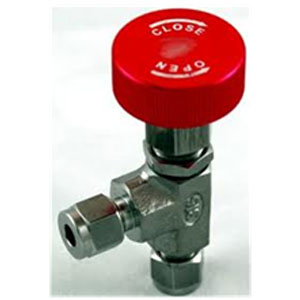

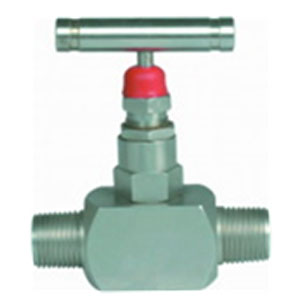

SS COMPRESSION NEEDLE VALVES

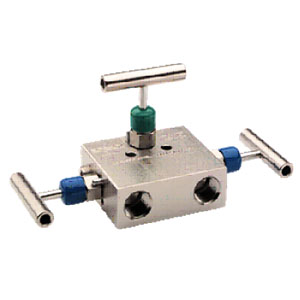

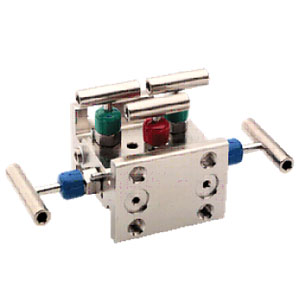

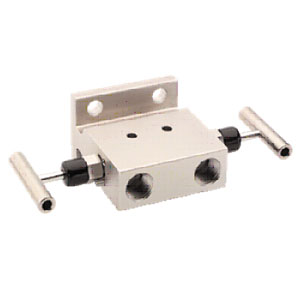

SS MANIFOLD VALVES

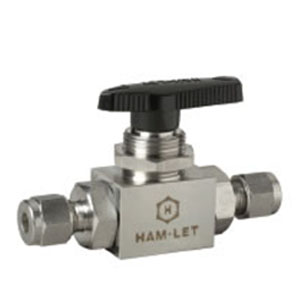

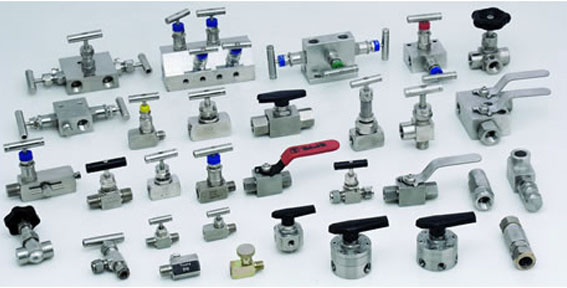

SS INTRUMENTATION MANIFOLD VALVES, NEEDLE VALVES, BALL VALVES AND FITTINGS

Features and Benefits of SS Instrumentation Double ferrule tube fittings

SS instrumentation tube fittings offer several benefits over other types of fittings, such as brass or plastic fittings. The key features and benefits of SS instrumentation tube fittings are:

  1. Corrosion Resistance: SS instrumentation tube fittings are highly resistant to corrosion, which makes them suitable for use in harsh environments. They are made from materials that resist corrosion and erosion, such as stainless steel and nickel alloys.
  2. High Pressure Rating: SS instrumentation tube fittings can withstand high pressure and temperature, making them ideal for applications that require high-pressure operations. They can handle pressures up to 20,000 psi, depending on the type and size of the fitting.
  3. High Temperature Rating: SS instrumentation tube fittings can operate in high-temperature environments, up to 1200°F, without compromising their performance or integrity.

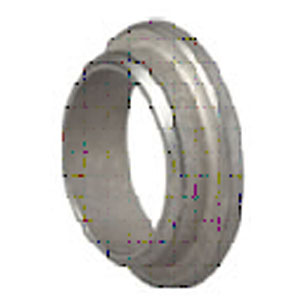

  4. Leak-Free Connections: SS instrumentation tube fittings are designed to provide a leak-free connection between tubing systems. They feature a double ferrule design that grips the tubing firmly and ensures a tight seal.
  5. Easy Installation: SS instrumentation tube fittings are easy to install and require minimal tools or equipment. They can be installed quickly, which reduces the installation time and cost.
  6. Versatility: SS instrumentation tube fittings are available in various sizes, configurations, and materials. This makes them suitable for use in a wide range of applications.

Types of Instrumentation Tube Fittings

There are several types of SS instrumentation tube fittings available, each designed to suit specific applications. The most common types of fittings include:

  1. Compression Fittings: Compression fittings are the most widely used type of SS instrumentation tube fittings. They consist of a nut, a ferrule, and a body. The ferrule is placed over the tubing, and the nut is tightened, compressing the ferrule onto the tubing and creating a seal.
  2. Push-to-Connect Fittings: Push-to-connect fittings are a type of compression fitting that requires no tools or equipment for installation. They feature a release ring that, when pressed, allows the tubing to be inserted into the fitting. The ring is then released, and the fitting grips the tubing, creating a secure connection.
  3. Flare Fittings: Flare fittings are used to connect tubing to components that have a flare connection, such as valves and regulators. They consist of a flare nut, a sleeve, and a body. The tubing is flared at the end and inserted into the fitting, and the nut is tightened, compressing the sleeve onto the tubing and creating a seal.
  4. Weld Fittings: Weld fittings are used to connect tubing to components that have a weld connection, such as tanks and vessels. They are welded directly to the component, creating a permanent connection.

Applications of SS Instrumentation Tube Fittings

SS instrumentation tube fittings are used in various industries and applications that require high-pressure, high-temperature, and corrosive-resistant tubing systems. Some of the most common applications of SS instrumentation tube fittings include:

  1. Oil and Gas Industry: The oil and gas industry relies heavily on SS instrumentation tube fittings to connect tubing systems used in drilling, refining, and transportation operations. They are used in offshore and subsea applications, where high-pressure and high-temperature operations are common. These fittings are also used in pipelines, valves, and other equipment that transport oil and gas.
  2. Chemical Processing: SS instrumentation tube fittings are used in chemical processing plants to connect tubing systems in production, storage, and transportation operations. They are resistant to corrosion, making them ideal for use in harsh chemical environments. These fittings are used in chemical reactors, distillation columns, and other equipment that handle corrosive chemicals.
  3. Power Generation: SS instrumentation tube fittings are used in power generation plants to connect tubing systems in boilers, turbines, and other equipment. They are designed to withstand high-temperature and high-pressure operations, making them ideal for use in power generation applications. These fittings are used in heat exchangers, condensers, and other equipment that generate or transfer heat.
  4. Aerospace and Defense: SS instrumentation tube fittings are used in aerospace and defense applications, where high-performance and reliability are critical. They are used in aircraft hydraulic systems, fuel systems, and other applications that require high-pressure and high-temperature operations. These fittings are also used in military vehicles, missiles, and other defense equipment.
  5. Food and Beverage Industry: SS instrumentation tube fittings are used in the food and beverage industry to connect tubing systems in production, storage, and transportation operations. They are designed to meet strict hygiene standards and are made from materials that do not contaminate food or beverages. These fittings are used in dairy processing, brewing, and other food and beverage applications.
  6. Pharmaceutical Industry: SS instrumentation tube fittings are used in the pharmaceutical industry to connect tubing systems in production, storage, and transportation operations. They are designed to meet strict hygiene standards and are made from materials that do not contaminate drugs or pharmaceutical products. These fittings are used in drug manufacturing, research, and development applications.
  7. Marine Industry: SS instrumentation tube fittings are used in the marine industry to connect tubing systems in boats, ships, and other marine vessels. They are resistant to corrosion and erosion from saltwater, making them ideal for use in harsh marine environments. These fittings are used in piping systems, engines, and other equipment in marine applications.

SS instrumentation tube fittings are essential components in many industrial applications that require high-pressure, high-temperature, and corrosive-resistant tubing systems. They are designed to provide leak-free connections, easy installation, and versatility, making them suitable for use in a wide range of applications.
