Pressure Gauges

  • Home
  • Pressure Gauges

PRESSURE GAUGES

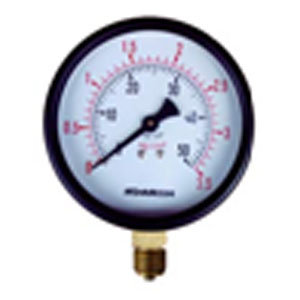

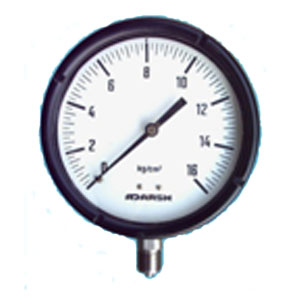

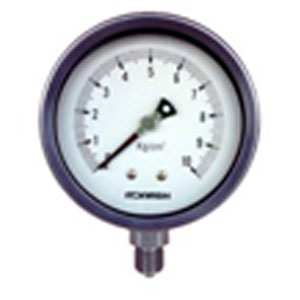

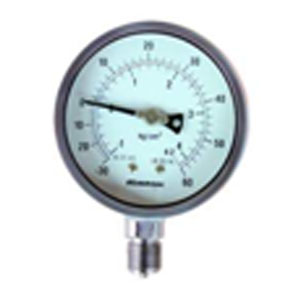

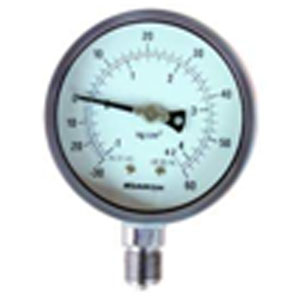

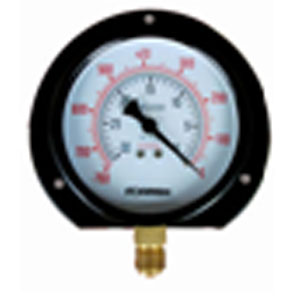

Standard Pressure Gauges

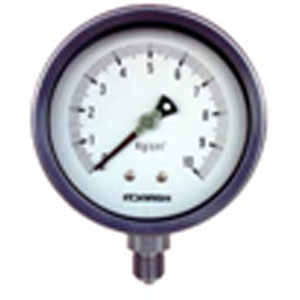

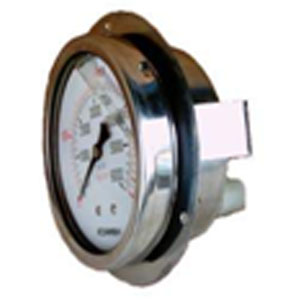

SS High Pressure Gauges

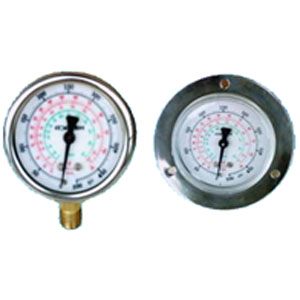

Freon Gauges

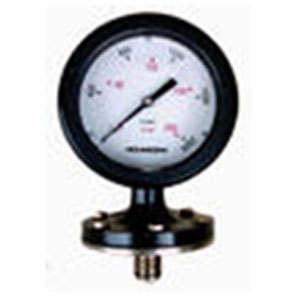

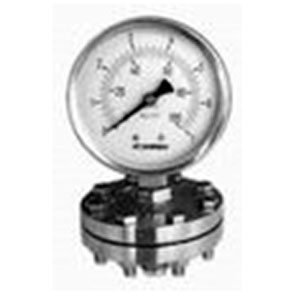

Diaphragm Pressure Gauges

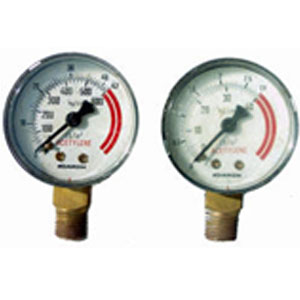

Oxygen / Acetylene / Halon / Hydrogen pressure gauges

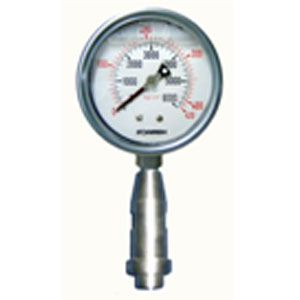

Homogenizer gauges



Weather proof gauges



TEMPERATURE GAUGES

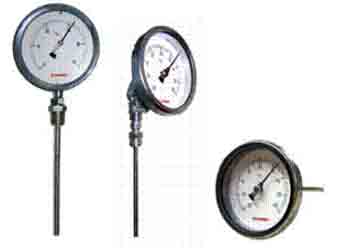

Dial Thermometers:

  • Dial : 63mm, 100mm, 150mm, 250mm
  • Connection : Bottom, Back, Angle type
  • Type : Stem Type, Capillary tube Type
  • Model : Bi-Mettalic, Inert Gas Filled, Mercury-in-SteelConnection : BottomBack Process Connection : 1/2″ (Standard)(Other Size also available on your Request)Ranges : 0 to 50 Deg.C, 60 Deg.C, 80 Deg.C, 100 Deg.C upto 650 Deg.C

Applications:


Availalble in dial sizes 2-1/2″, 4″ & 6″

Back, Bottom or All-Angle (Every Angle) Type

Complete Stainless Steel Construction

Dry or Liquid Filled (Glycerin or Silicon)

Any standard thread connection

Ranges from -40 to +500 deg C

Pharmaceutical, Chemical, Petrochemical, Refinery, Paper, & Pulp, Sugar, Breweries, Food & Beverages, Cement Industries, etc

Custom Stem Lengths, Stem Diameter, Temp. Ranges

Custom Designed Dials

Accessories: Thermowells

PRESSURE GAUGE ACCESSORIES

PIGTAIL SYPHONS

Pressure Gauge Accessories
The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.

U Type Siphons are Suitable for Veritcal Pipe Mounting

Coil / Pigtail Siphons are Suitable for Horizontal Pipe Mounting

PRESSURE GAUGE PROTECTORS

Also known as over pressure protectors are used to protect the pressure gauge from over pressure. The gauge saver has a predefined setpoint at which it will not allow any media to flow. The setpoint can be varied for a max span of 10% of set pressure. Available for set pressure ranges from 1000mmwc (0.1 kg/cm2) upto 600kg/cm2.

AG1 – 0.1 to 0.5 kg/cm2

AG2 – 0.6 to 1.6 kg/cm2

AG3 – 2 to 280 kg/cm2

AG4 – 300 to 600 kg/cm2
Gauge Cocks are used for flow control like simple on/off, isolation applications. Suitable for pressure upto 30 kg/cm2.

Available in 2 way / 3way type

Material SS316 or SS304 or Brass

3/8”, ½” bsp or npt connection
The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.
