Hydraulic Flanges

  • Home
  • Hydraulic Flanges

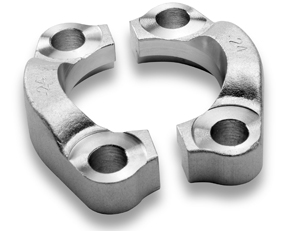

SPLIT FLANGES

  • They are manufactured in as per the mounting dimensions ranges up to SAE J518 specifications and code 61 or code 62, and ISO 6162. They have a socket weld NPTF and SAE straight thread connections and are available as reducers.

    Features:


    MOC: Low Carbon Steel, S.S.304 S.S.316 Forged or Plate

    Available with either inch or metric threads.

    Fittings are available with straight sizes: 1/2″NB to 6″NB

    Used for pipe and tubing

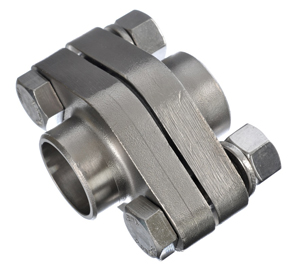

UNION FLANGES

  • We offer a range of union flange that are used in many industries and are manufactured from high grade raw material.

    Features:


    Easy to install
    Efficient with bolt-hole alignment
    Versatile can be used under or above ground; usable with abrasive materials
    Corrosion resistant
    Used for flange
    Reliable based on proven design principles
    Prevents delays during assembl

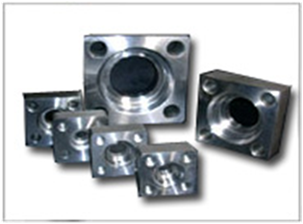

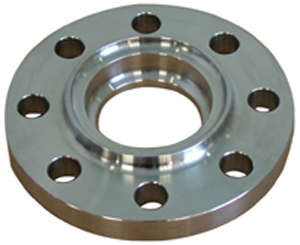

SOCKET WELD FLANGES

  • Socket Weld Flanges are similar to slip-on flanges, however, socket welds have an internal recess on the inside diameter to allow for a smoother flow of the process fluid. The positive of this is that is creates a smooth bore with the proper welding and grinding. They are durable and are available with varied specifications.

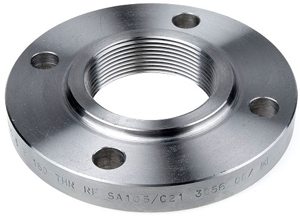

THREADED FLANGES

  • Threaded Flanges offered by us are used for extraordinary circumstances and can be placed with the pipe without welding. Sometimes a seal weld is also used in conjunction along with the threaded connections. They are also used for high pressure and have a diverse application area.

HYDRAULIC SPLIT FLANGES—3000​

Hydraulic flanges are components used in hydraulic systems to connect pipes, tubes, or hoses securely. They provide a method for joining hydraulic components, such as pumps, valves, cylinders, and other equipment, in a way that allows for easy assembly, disassembly, and maintenance. Hydraulic flanges come in various shapes and sizes, and they are an integral part of hydraulic systems in industries such as manufacturing, construction, and transportation.

Key aspects and Functions of Hydraulic Flanges

  1. Connection and Sealing:

    • Hydraulic flanges are designed to create a strong and leak-proof connection between different hydraulic components. They often incorporate seals, such as O-rings or gaskets, to prevent fluid leakage from the connection points.

  2. Mounting Components:

    • Hydraulic flanges serve as mounting surfaces for various hydraulic components, including pumps, motors, valves, and cylinders. They provide a stable platform for attaching these components to the hydraulic system.

  3. Easy Assembly and Disassembly:

    • Hydraulic flanges facilitate the easy assembly and disassembly of hydraulic connections. This is particularly important for maintenance, repair, or replacement of hydraulic components, as it allows for quick access to the system without the need for extensive disassembly.

  4. Orientation and Alignment:

    • Flanges help in aligning and orienting hydraulic components accurately. This is crucial for ensuring that the components function properly and that there is minimal stress on the system.

  5. Pressure Ratings:

    • Hydraulic flanges are designed to handle specific pressure ratings, and they are selected based on the pressure requirements of the hydraulic system. It’s important to use flanges that match or exceed the maximum pressure expected in the system to ensure safety and reliability.

  6. Materials and Corrosion Resistance:

    • Hydraulic flanges are commonly made of materials such as steel or stainless steel to provide strength and durability. The choice of material is influenced by factors such as the operating environment, fluid compatibility, and corrosion resistance.

  7. Flange Standards:

    • There are various flange standards, such as SAE (Society of Automotive Engineers) and ISO (International Organization for Standardization), that specify the dimensions, pressure ratings, and other characteristics of hydraulic flanges. Adhering to these standards ensures compatibility and interchangeability of components in hydraulic systems.

  8. Versatility:

    • Hydraulic flanges are versatile and can be used in a wide range of applications. They are available in different types, including weld neck flanges, socket weld flanges, and split flanges, each suited to specific needs.

Hydraulic flanges play a crucial role in hydraulic systems by providing a secure, leak-free, and accessible connection between various components. Their design and features contribute to the efficiency, reliability, and ease of maintenance of hydraulic systems in diverse industrial applications.
